Electromech HVAC Specialist Pty Ltd is a solo distributer for Brook Crompton range of motors such as:
W Aluminium
Construction: Aluminium
Frame sizes: 63 to 180
Output: 0.07kW to 22kW
Downloads:
>> Catalogue
>> Safety Leaflet
>> Installation & Maintenance booklet
The W aluminium range covers products with outputs from as little as 0.07kW to 22kW in frame sizes WU-DA63S to WU-DA180L, in either 2,4,6 or 8 pole speeds.
They are widely used in a diverse range of applications from food and drink to water and sewage. From heating and ventilation to refrigeration.
Some of the benefits of aluminium over cast iron include high resistance to corrosion and atmospheric attack (except chlorine, salt-laden or sulphuric acid) and the fact that aluminium is approximately one third the weight of cast iron.

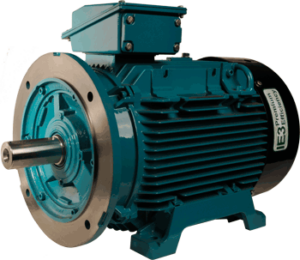

W Cast Iron
Construction: Cast Iron
Frame sizes: 80 to 355
Output: 0.75kW to 400kW
Downloads:
>> Catalogue
>> Safety Leaflet
>> Installation & Maintenance booklet
The W cast iron motor range covers products with outputs from as little as 0.75kW to 400kW in frame sizes 80 to 355L.
They are suitable for use within a diverse range of applications from food and drink to china clay production. From roller table drives to refrigeration.
Many applications often have adverse operating conditions including repeated starting and occasional overloading; the W cast iron range is well suited to these situations.
A virtual go anywhere motor, this cast iron range has a full 3-year guarantee.

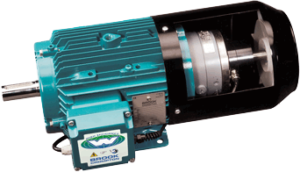

Brake Motors
Construction: Aluminium or Cast Iron
Frame sizes: 63 to 355
Output: 0.07kW to 400kW
Downloads:
>> Catalogue
>> Safety Leaflet
>> Installation & Maintenance booklet
Brook Crompton offers the most comprehensive range of brake motors with highly competitive delivery times, due in part to its innovative brake kit concept available on W motors.

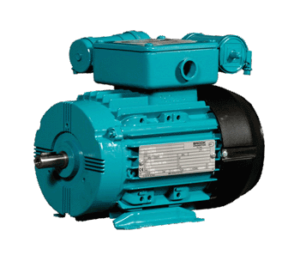

Single Phase
Construction: Aluminium
Frame sizes:
71 to 90 (Capacitor Start / Induction Run)
71 to 100L (Capacitor Start / Capacitor Run)
63 to 90L (Permanent Capacitor)
Outputs:
0.12kW to 1.5kW (Capacitor Start / Induction Run)
0.18kW to 3.0kW (Capacitor Start / Capacitor Run)
0.09kW to 2.2kW (Permanent Capacitor)
Downloads:
>> Catalogue
>> Safety Leaflet
>> Installation & Maintenance booklet
Single phase motors are used primarily in small workshops and farms with a domestic supply. Some industrial equipment are specifically for use with a single phase electricity supply, such as fans, blowers, centrifugal pumps and high pressure washers.
Dependent on the application we are able to offer different types of single phase motors.
Hazardous Area AC Motors

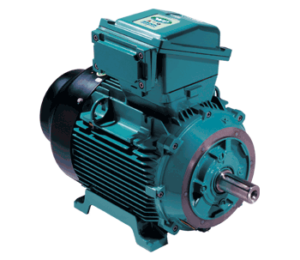

Ex D(E)
Construction: Cast Iron
Frame sizes: 90 to 315
Output: 0.37kW to 315kW
Downloads:
>> Catalogue
>> Safety Leaflet
>> Installation & Maintenance booklet
>> Technical Section
The Ex d(e) range of flameproof cast iron motors cover outputs from 0.37kW to 200kW in frame sizes W-EF90 to W-EF315, in 2, 4, 6, & 8 pole speeds. ATEX approved by Baseefa.
EEx NA
Construction: Aluminium or Cast Iron
Frame sizes: 63 to 355
Output: 0.07kW to 400kW
Downloads:
>> Catalogue
>> Safety Leaflet
>> Installation & Maintenance booklet
>> Technical Section
The W EEx nA non-sparking range of motors covers products with outputs from 0.18kW to 400kW in cast iron frame sizes W-DF80M to W-DF355L, in either 2,4,6 or 8 pole speeds (also available in aluminum from 71 to 180 frames).
All relevant products fully comply with the requirements of ATEX.
Dust Ignition Proof
Construction: Aluminium or Cast Iron
Frame sizes: 63 to 355
Output: 0.07kW to 400kW
Downloads:
>> Catalogue – contact sales
>> Safety Leaflet
>> Installation & Maintenance booklet
>> Technical Section
The dust ignition proof range of W motors covers products with outputs from as 0.18kW to 315kW in cast iron frame sizes W-DF80M to W-DF355L, in either 2,4,6 or 8 pole speeds. All relevant products fully comply with the requirements of ATEX.
EEx E
Construction: Aluminium or Cast Iron
Frame sizes: 63 to 355
Output: 0.07kW to 400k
Ph +61 2 93342888
Fax +61 2 93342800
Downloads:
>> Catalogue – contact sales
>> Safety Leaflet
>> Installation & Maintenance booklet
>> Technical Section
The W EEx e increased safety range of motors covers products with outputs from 0.18kW to 315kW in frame sizes W-DF80M to W-DF355L, in either 2,4,6 or 8 pole speeds. ATEX approved by Baseefa.
